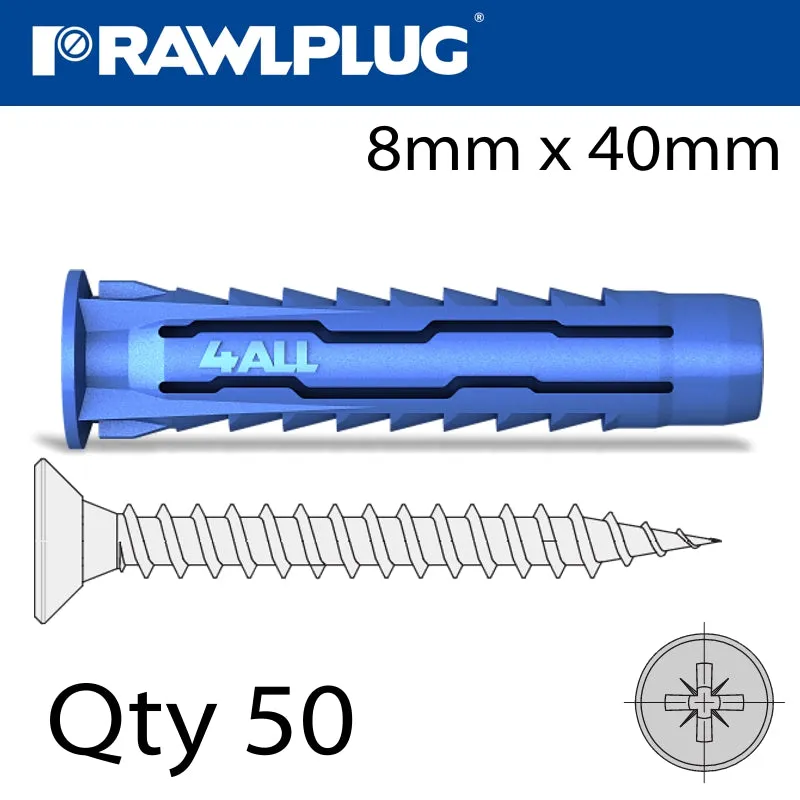

High performance nylon plug with screw for all types of substrates
8mm x 40mm [Box of 50]
Installation guide
- Drill a hole of required diameter.
- Insert 4ALL plug into hole and tap home.
- Insert screw of required diameter into plug through fixture and tighten.
Features:
- Unique internal design provides positive grip for screws.
- Anti-rotational lugs promote grip in wide range of substrates including soft masonry materials.
- Rib detail at plug head provides added grip.
- Expanding section designed to collapse in hollow materials and provide positive grip behind surfaces.
- Unique 4 way expansion allowing application in any substrate material and type.
- Solid head design provides strength whilst plug is installed.
Installation guide
- Drill a hole of required diameter.
- Insert 4ALL plug into hole and tap home.
- Insert screw of required diameter into plug through fixture and tighten.
Specifications
| Size | Ø 5 | Ø 6 | Ø 8 | Ø 10 | Ø 12 | Ø 14 | ||
| Fixing diameter | d | [mm] | 5 | 6 | 8 | 10 | 12 | 14 |
| Hole diameter in substrate | d0 | [mm] | 5 | 6 | 8 | 10 | 12 | 14 |
| Min. hole depth in substrate | h0 | [mm] | 35 | 40 | 50 | 60 | 70 | 80 |
| Installation depth | hnom | [mm] | 25 | 30 | 40 | 50 | 60 | 70 |
| Min. substrate thickness | hmin | [mm] | 65 | 70 | 80 | 90 | 100 | 100 |
| Min. spacing | smin | [mm] | 25 | 30 | 40 | 50 | 60 | 70 |
| Min. edge distance | cmin | [mm] | 25 | 30 | 40 | 50 | 60 | 70 |
